Ready-Made Projects

Unleash the potential of your device by installing ready-made ESPHome projects from this page. Connect your device to your PC, a few clicks in the browser and your ESPHome device is ready to do its magic - as a Bluetooth proxy or a media player. No programming or other software required.

This page requires a browser that supports WebSerial. Please open this website on your desktop using Firefox, Google Chrome or Microsoft Edge.

I want to create a:
Pick the device you want to turn into a voice assistant:
Select your variant:
Start the installation:

M5Stack Atom Echo Development Kit

Tiny ESP32 board with a built-in speaker.

Buy

ESP32-S3-BOX-3

The open-source reference design for voice assistants by Espressif. The non-3 and lite variants are older versions that are no longer for sale.

Buy ESP32-S3-BOX-3

Home Assistant Voice: Preview Edition

Our official voice assistant hardware created for ESPHome. Includes advanced voice processing and a beautiful design.

Learn more & buy

For advanced users

Pick the device you want to turn into a Bluetooth proxy:
Start the installation:

Generic ESP32

Turn any ESP32 into a Bluetooth proxy for Home Assistant. This option only works for “plain” ESP32 and not for ESP32-C3 or other variants.

Buy

Olimex ESP32 Power-over-Ethernet ISO

ESP32 board with wired Ethernet connection that can also be powered using Power over Ethernet 802.3af. Note that when installed via this website, Wi-Fi is disabled and it needs to be connected via Ethernet. The ESP32-POE-ISO-EA variant may provide better Bluetooth range since it has an external antenna. Case on Thingiverse.

Buy

Seeed Studio XIAO W5500 Ethernet Adapter V1.2

The development board based on the ESP32-S3-Plus XIAO, equipped with the W5500 Ethernet chip, provides wired network connectivity and supports Power over Ethernet (PoE). Please note that after installation via this website, Wi-Fi will be disabled, and the device must be connected via Ethernet.

Note: Only V1.2 boards (produced after November 1, 2025) are supported. Earlier versions were never originally intended for use as active Bluetooth proxies and are not compatible due to a missing interrupt pin connection for the W5500 Ethernet chip and Bluetooth RF performance issues. See the forum post for more details and support options for early-batch units.

Buy

LilyGO T-ETH-POE ESP32-WROOM

A compact board with an ESP32-WROOM module and wired Ethernet connection. Can be powered via Power over Ethernet 802.3af or via the built in USB-C port. Note that when installed via this website, Wi-Fi is disabled and it needs to be connected via Ethernet. Various enclosures on Thingiverse.

Warning: This board requires extra work. This device comes with a special “download tool” that needs to be used to install it as a Bluetooth proxy.

Buy

GL.iNet GL-S10

ESP32 in a case with external antenna and wired Ethernet connection that can also be powered using Power over Ethernet 802.3af. Note that when installed via this website, Wi-Fi is disabled and it needs to be connected via Ethernet.

Warning: This board requires extra work. This device requires you to disassemble the device to be able to install it as a Bluetooth proxy. This installation method is for revision 2.X of their board. See instructions for the configuration of other revisions. Read DIY instructions.

Buy

Wireless-Tag WT32-ETH01

ESP32 board with wired Ethernet connection. Note that when installed via this website, Wi-Fi is disabled and it needs to be connected via Ethernet. Various enclosures on Thingiverse.

Warning: This board requires extra work. This device requires you to create a special flash tool to be able to install it as a Bluetooth proxy. Read DIY instructions.

Buy

For advanced users

Pick the device you want to turn into a media player:
Start the installation:

Home Assistant Voice: Preview Edition

Our official voice assistant hardware created for ESPHome includes an aux port and a beautiful encoder to control the volume in style.

Learn more & buy

For advanced users

Pick the device you want to turn into an infrared or radio frequency proxy:
Start the installation:

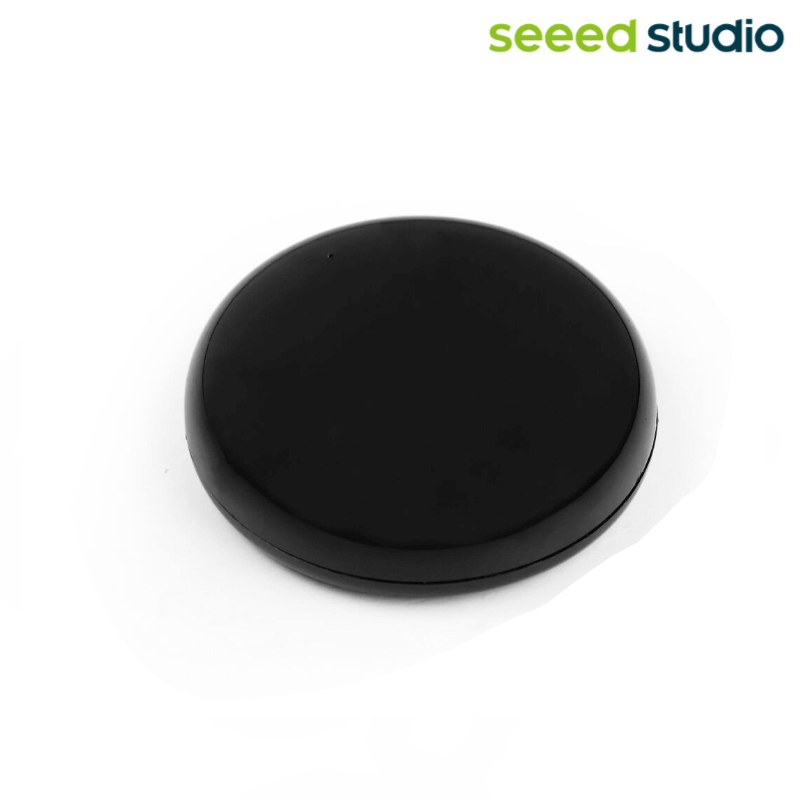

Xiao IR Mate

Small but powerful infrared emitter.

Learn more & buy

Radio Frequency Proxy

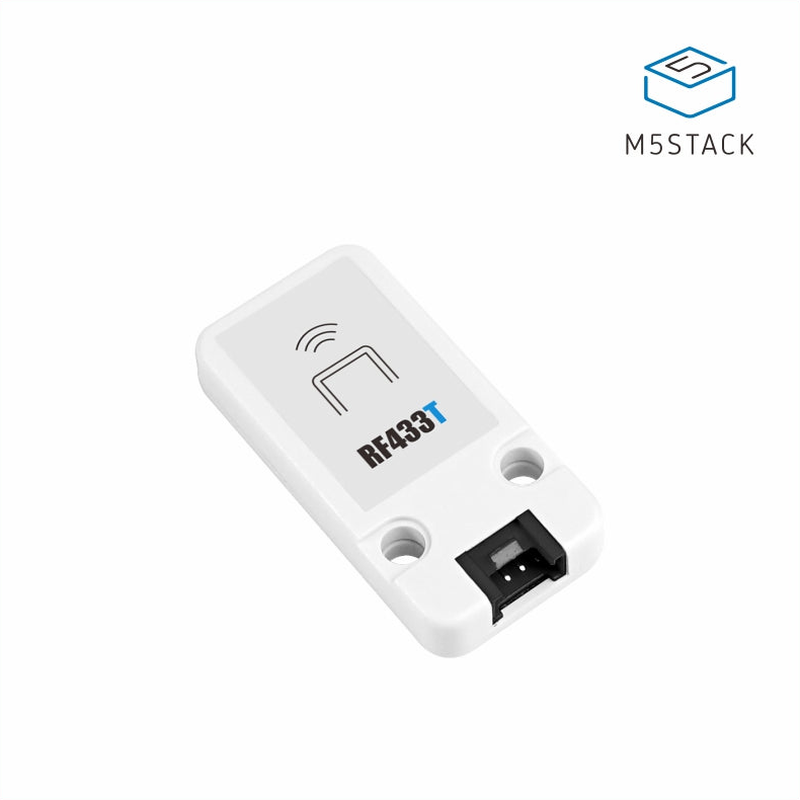

Turn an M5Stack Atom Lite into a 433MHz radio frequency proxy for Home Assistant. Connect the RF Unit to the Atom Lite using the included Grove cable.

This project requires two devices from M5Stack:

For advanced users

Pick the device you want to turn into a serial proxy:
Start the installation:

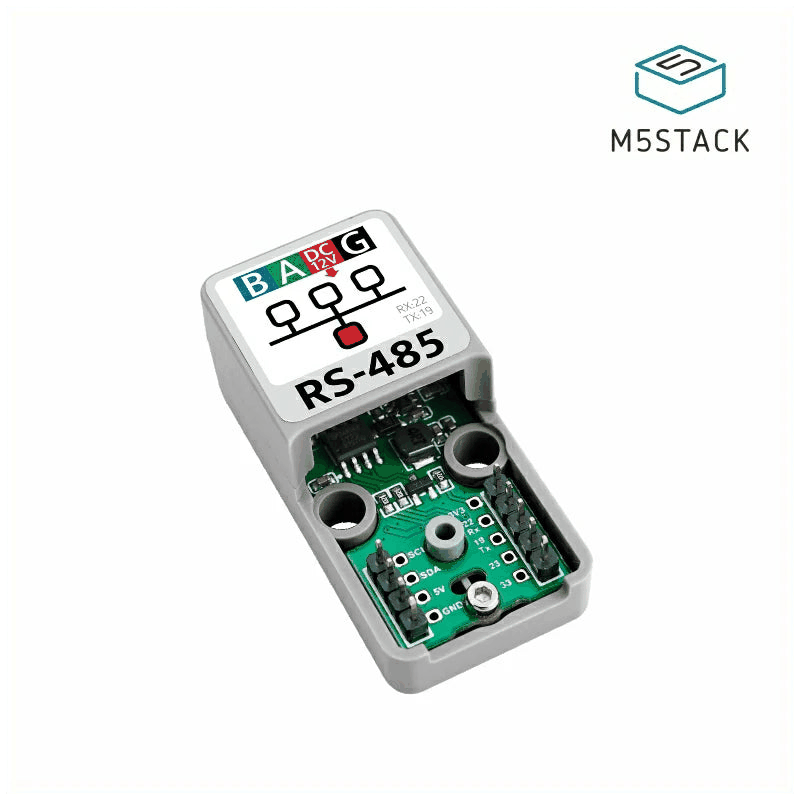

M5Stack AtomS3 Lite with ATOMIC RS485 Base

Turn an M5Stack AtomS3 Lite into an RS-485 proxy for Home Assistant. This lets Home Assistant talk to Modbus and other RS-485 devices over the network. Mount the AtomS3 Lite on the ATOMIC RS485 Base to connect the two.

Home Assistant finds the serial port on its own. Other software must address the port with a URL like esphome://atoms3-lite-rs485-a1b2c3.local/?port_name=RS-485. Replace the hostname portion ("atoms3-lite-rs485-a1b2c3.local") with the actual hostname or IP address of your device. The serial port is named RS-485 by the project configuration. Add &noise_psk=<key> if the device uses API encryption. Percent-encode the key first. A base64 key can contain +, and a URL reads + as a space, so write it as %2B.

This project requires two devices from M5Stack:

For advanced users

Pick the manufacturer of the device you want to set up:
Start the installation:
Installation instructions:
  1. Disconnect your Raspberry Pi Pico from your computer
  2. Hold the BOOTSEL button and connect the Pico to your computer. The Pico will show up as a USB drive named RPI-RP2
  3. Download ESPHome for Pico
  4. Drag the downloaded file to the RPI-RP2 USB drive. The installation is complete when the drive disappears
  5. Connect your Pico to the Wi-Fi network. Once connected, it will automatically show up on your ESPHome dashboard.
