TMP102 Temperature Sensor

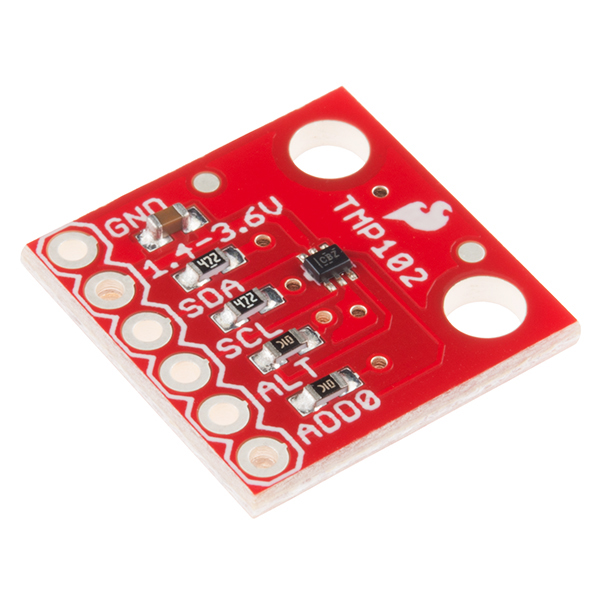

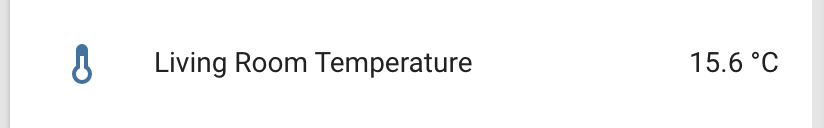

The TMP102 temperature sensor allows you to use Texas Instruments TMP102 and LM75 sensors with ESPHome. TMP102 breakout boards are available from SparkFun. The I²C Bus must be configured first.

# Example configuration entrysensor: - platform: tmp102 name: "Living Room Temperature" update_interval: 60sConfiguration Variables
Section titled “Configuration Variables”- id (Optional, ID): Manually specify the sensor ID. Use this when another TMP102 platform must select one of multiple TMP102 sensors.
- update_interval (Optional, Time): How often ESPHome reads the sensor.
Defaults to
60s. - address (Optional, int): The I²C address. Defaults to
0x48. TMP102 supports0x48through0x4B, selected by the ADD0 pin. - All other options from Sensor.
Optional Hardware Settings
Section titled “Optional Hardware Settings”Temperature-only configurations work unchanged and write no registers at startup. Setting any option below or adding a TMP102 number makes ESPHome write the configuration register and both threshold registers during setup, using the listed defaults for omitted settings. These settings apply to TMP102 chips; do not enable them for LM75 sensors. Adding only an alert binary sensor or threshold status text sensor does not enable hardware configuration or write these registers.
Before each update ESPHome reads the configuration register back. If it no longer matches, for example after the chip alone lost power, ESPHome rewrites the configuration and both thresholds, skips that update and sets the sensor’s warning status until the next reading succeeds. Do not use another controller to change these registers while ESPHome manages them.
The defaults below are the chip’s power-on values and apply once any of these options is set or a TMP102 number is added.
- extended_mode (Optional, boolean): Use the 13-bit temperature format. Defaults to
false. - conversion_rate (Optional, string): Chip conversion rate:
0.25Hz,1Hz,4Hz, or8Hz. Defaults to4Hz. This is independent ofupdate_interval. - one_shot_mode (Optional, boolean): Keep the chip in shutdown between readings and trigger one conversion
per update. The thresholds are then compared only once per
update_interval, so ALERT can lag a crossing by up tofault_queueintervals, andconversion_ratehas no effect. Defaults tofalse. - alert_polarity (Optional, string): ALERT pin polarity,
active_loworactive_high. Defaults toactive_low. - thermostat_mode (Optional, string): How the ALERT pin behaves. In
comparatormode ALERT asserts when the temperature reachestemperature_highand clears when it falls belowtemperature_low. Ininterruptmode ALERT asserts on crossing either threshold and stays asserted until a register is read; because ESPHome reads the chip on every update, the pin clears at the nextupdate_intervalat the latest. Defaults tocomparator. - fault_queue (Optional, int): Consecutive fault conversions required before ALERT changes:
1,2,4, or6. Defaults to1. - temperature_high (Optional, temperature): High threshold. Defaults to
80°C. With a TMP102 number, this is the number’s starting value. - temperature_low (Optional, temperature): Low threshold. Defaults to
75°C. With a TMP102 number, this is the number’s starting value.
Thresholds accept Celsius or Fahrenheit values, such as 30°C or 86°F. The low threshold must not exceed the high
threshold. Supported thresholds range from -55°C to 127.9375°C in normal mode, or 150°C in extended mode.
The chip stores thresholds in steps of 0.0625°C; values are rounded to the nearest step, with exact half-steps
rounded away from zero. Temperature sensor filters do not change thermostat thresholds or alert decisions.
In continuous mode, the chip makes conversions independently of ESPHome polling. In one-shot mode, ESPHome waits 40 ms after triggering a conversion before reading it. Continuous-mode reads happen immediately and do not force a new conversion. Very short update intervals do not restart a pending one-shot conversion. Each reading uses the format flag in the temperature register, including when a sample still uses the previous mode’s format.
Adjustable Thresholds
Section titled “Adjustable Thresholds”The TMP102 Number platform adjusts thermostat thresholds at runtime. It requires a TMP102 temperature sensor in the same configuration. Other hardware settings remain in YAML. This platform applies to TMP102 chips, not LM75 sensors.
sensor: - platform: tmp102 id: freezer_temperature name: "Freezer Temperature" temperature_high: -12°C temperature_low: -13°C
number: - platform: tmp102 tmp102_id: freezer_temperature temperature_high: name: "High Temperature Threshold" temperature_low: name: "Clear Temperature Threshold"Number Configuration Variables
Section titled “Number Configuration Variables”- tmp102_id (Optional, ID): The TMP102 temperature sensor to control. Required when the configuration contains more than one TMP102 sensor.
- temperature_high (Optional): High threshold number.
- temperature_low (Optional): Low threshold number.
At least one threshold number is required. Only one TMP102 number platform may reference each temperature sensor. Both threshold numbers support:
- restore_value (Optional, boolean): Save accepted changes and restore them after reboot. Defaults to
true. - All other options from Number.
These numbers use Celsius internally, have a step of 0.0625°C, and default to configuration entities. Their range is
the chip’s range: -55°C to 127.9375°C, or 150°C in extended mode. Number states and saved values reflect the
rounded hardware thresholds.
The sensor’s temperature_high and temperature_low are the numbers’ starting values, or 80°C and 75°C when
omitted. With restore_value: true, a saved value takes precedence over the starting value, so once a number has
saved a value, changing the sensor’s threshold in YAML has no effect until the number is changed again or
restore_value is set to false. With restore_value: false, that threshold starts from its starting value on
every boot. ESPHome loads both saved
thresholds before checking their relationship. A saved value out of range is discarded. If the resulting pair is
inverted, both thresholds use their starting values. After successful hardware setup, corrected values are saved and
the fallback is logged.
Runtime changes must stay within range and keep the low threshold at or below the high threshold. A change that crosses the other threshold is rejected, and the entity keeps the accepted value. A failed I²C write also keeps the accepted value and sets the sensor’s warning status until the next reading succeeds. If hardware setup failed, changes are rejected with a warning and the numbers have no state. When moving both thresholds, change the high threshold first when raising the pair, or the low threshold first when lowering it.
Threshold Status Text Sensor
Section titled “Threshold Status Text Sensor”The TMP102 Text Sensor platform reports threshold validation, writes, restoration, and configuration recovery. It requires a TMP102 temperature sensor in the same configuration. This platform applies to TMP102 chips, not LM75 sensors.
sensor: - platform: tmp102 id: freezer_temperature name: "Freezer Temperature" temperature_high: -12°C temperature_low: -13°C
text_sensor: - platform: tmp102 tmp102_id: freezer_temperature name: "Threshold Status"- tmp102_id (Optional, ID): The TMP102 temperature sensor to monitor. Required when the configuration contains more than one TMP102 sensor.
- All other options from Text Sensor.
Only one threshold status text sensor may reference each TMP102 sensor. It defaults to the diagnostic entity
category. The possible states are:
| State | Meaning |
|---|---|
OK | Setup completed with no other result to report, or an accepted runtime threshold write completed. |
Not configured | No hardware setting or threshold number enables ESPHome management. |
Setup failed | Writing the configuration or thresholds during setup failed. |
Restored thresholds reset | Invalid saved thresholds were replaced with configured starting values. |
Restore reset; save failed | Corrected thresholds reached the chip, but saving the corrected values failed. |
Preference save failed | A runtime threshold reached the chip, but saving it failed. |
Write failed: high threshold | Writing a requested high threshold failed. |
Write failed: low threshold | Writing a requested low threshold failed. |
Rejected: sensor setup failed | A runtime threshold change was rejected because setup failed. |
Rejected: high VALUE°C crosses low VALUE°C | A high-threshold change would cross the low threshold. |
Rejected: low VALUE°C crosses high VALUE°C | A low-threshold change would cross the high threshold. |
Configuration restored | Changed configuration or threshold registers were restored. |
Configuration recovery failed | Restoring changed registers failed. |
VALUE is printed with four decimal places. Adding this entity alone does not enable hardware configuration or write
registers. This entity reports threshold-management results, not general sensor connectivity.
Alert Binary Sensor
Section titled “Alert Binary Sensor”The TMP102 Binary Sensor platform reports the chip’s AL comparator-status bit over I²C. It requires a TMP102 temperature sensor in the same configuration. This platform applies to TMP102 chips, not LM75 sensors.
sensor: - platform: tmp102 id: freezer_temperature name: "Freezer Temperature" temperature_high: -15°C temperature_low: -18°C
binary_sensor: - platform: tmp102 tmp102_id: freezer_temperature name: "Freezer Too Warm"- tmp102_id (Optional, ID): The TMP102 temperature sensor to read. Required when the configuration contains more than one TMP102 sensor.
- All other options from Binary Sensor.
Only one alert binary sensor may reference each TMP102 sensor. on means the comparator status is active, regardless
of the configured ALERT polarity. The status becomes active once the temperature reaches the high threshold and
remains active until it falls below the low threshold, subject to the configured fault queue. ESPHome updates the
entity after reading the temperature, so changes appear at the sensor’s polling rate. A failed temperature or
configuration read invalidates the binary-sensor state until a complete read succeeds.
The entity is read-only. Adding it does not change the TMP102 configuration, polarity, or thresholds. Without
temperature_high and temperature_low on the sensor and without a TMP102 number, the status follows the thresholds
already stored in the chip, which are 80°C and 75°C after power-on.
NOTE
This entity reports comparator status, not the physical ALERT pin level. In interrupt mode, reading a chip register clears the latched ALERT pin; the AL bit still reports comparator status.
Physical ALERT Pin
Section titled “Physical ALERT Pin”To monitor the physical ALERT pin, wire it to a GPIO and use a GPIO Binary Sensor. The example below uses the default active-low polarity.
sensor: - platform: tmp102 name: "Freezer Temperature" one_shot_mode: true thermostat_mode: comparator alert_polarity: active_low temperature_high: -15°C temperature_low: -18°C
binary_sensor: - platform: gpio name: "Freezer Too Warm" pin: number: GPIOXX inverted: true mode: input: true pullup: true
