SPS30 Particulate Matter Sensor¶
The sps30
sensor platform allows you to use your Sensirion SPS30
(datasheet) sensors with ESPHome.
The I²C Bus is required to be set up in your configuration for this sensor to work.
This sensor supports both UART and I²C communication. However, at the moment only I²C communication is implemented.

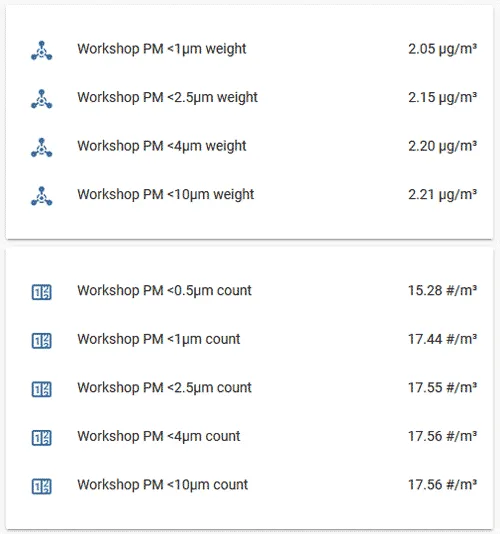

![../../_images/sensirion-pm.png](../../_images/sensirion-pm.png)
# Example configuration entry
sensor:
- platform: sps30
pm_1_0:
name: "Workshop PM <1µm Weight concentration"
id: "workshop_PM_1_0"
pm_2_5:
name: "Workshop PM <2.5µm Weight concentration"
id: "workshop_PM_2_5"
pm_4_0:
name: "Workshop PM <4µm Weight concentration"
id: "workshop_PM_4_0"
pm_10_0:
name: "Workshop PM <10µm Weight concentration"
id: "workshop_PM_10_0"
pmc_0_5:
name: "Workshop PM <0.5µm Number concentration"
id: "workshop_PMC_0_5"
pmc_1_0:
name: "Workshop PM <1µm Number concentration"
id: "workshop_PMC_1_0"
pmc_2_5:
name: "Workshop PM <2.5µm Number concentration"
id: "workshop_PMC_2_5"
pmc_4_0:
name: "Workshop PM <4µm Number concentration"
id: "workshop_PMC_4_0"
pmc_10_0:
name: "Workshop PM <10µm Number concentration"
id: "workshop_PMC_10_0"
pm_size:
name: "Typical Particle size"
id: "pm_size"
address: 0x69
update_interval: 10s
Configuration variables:¶
pm_1_0 (Optional): The information for the Weight Concentration sensor for fine particles up to 1μm. Readings in µg/m³.
All options from Sensor.
pm_2_5 (Optional): The information for the Weight Concentration sensor for fine particles up to 2.5μm. Readings in µg/m³.
All options from Sensor.
pm_4_0 (Optional): The information for the Weight Concentration sensor for coarse particles up to 4μm. Readings in µg/m³.
All options from Sensor.
pm_10_0 (Optional): The information for the Weight Concentration sensor for coarse particles up to 10μm. Readings in µg/m³.
All options from Sensor.
pmc_0_5 (Optional): The information for the Number Concentration sensor for ultrafine particles up to 0.5μm. Readings in particles/cm³.
All options from Sensor.
pmc_1_0 (Optional): The information for the Number Concentration sensor for fine particles up to 1μm. Readings in particles/cm³.
All options from Sensor.
pmc_2_5 (Optional): The information for the Number Concentration sensor for fine particles up to 2.5μm. Readings in particles/cm³.
All options from Sensor.
pmc_4_0 (Optional): The information for the Number Concentration sensor for coarse particles up to 4μm. Readings in particles/cm³.
All options from Sensor.
pmc_10_0 (Optional): The information for the Number Concentration sensor for coarse particles up to 10μm. Readings in particles/cm³.
All options from Sensor.
pm_size (Optional): Typical particle size in μm.
All options from Sensor.
auto_cleaning_interval (Optional): The interval in seconds of the periodic fan-cleaning.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x69
.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s
.
Wiring:¶

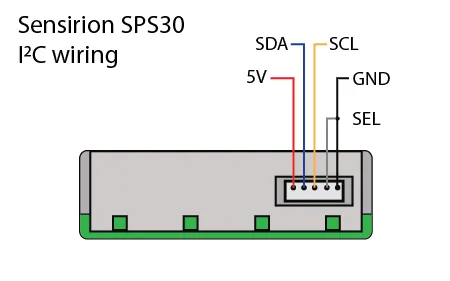

The sensor has a 5 pin JST ZHR type connector, with a 1.5mm pitch. (Matching connector housing, datasheet) To force the sensor into I²C mode, the SEL pin (Interface Select pin no.5) should be shorted to ground (pin no.4)
![../../_images/sps30-wiring.png](../../_images/sps30-wiring.png)
For better stability, the SDA and SCL lines require suitable pull-up resistors.
Automatic Cleaning:¶
The SPS30 sensor has an automatic fan-cleaning which will accelerate the built-in fan to maximum speed for 10 seconds in order to blow out the dust accumulated inside the fan. The default automatic-cleaning interval is 168 hours (1 week) of uninterrupted use. Switching off the sensor resets this time counter. Disabling of automatic-cleaning or setting a manual interval is not supported at the moment.
sps30.start_fan_autoclean
Action¶
This action manually starts fan-cleaning.
on_...:
then:
- sps30.start_fan_autoclean: my_sps30
