MS5611 Atmospheric Pressure Sensor¶
The ms5611
sensor platform allows you to use your MS5611 atmospheric pressure sensors
(hobbytronics) temperature and pressure sensors with ESPHome. The I²C is
required to be set up in your configuration for this sensor to work.

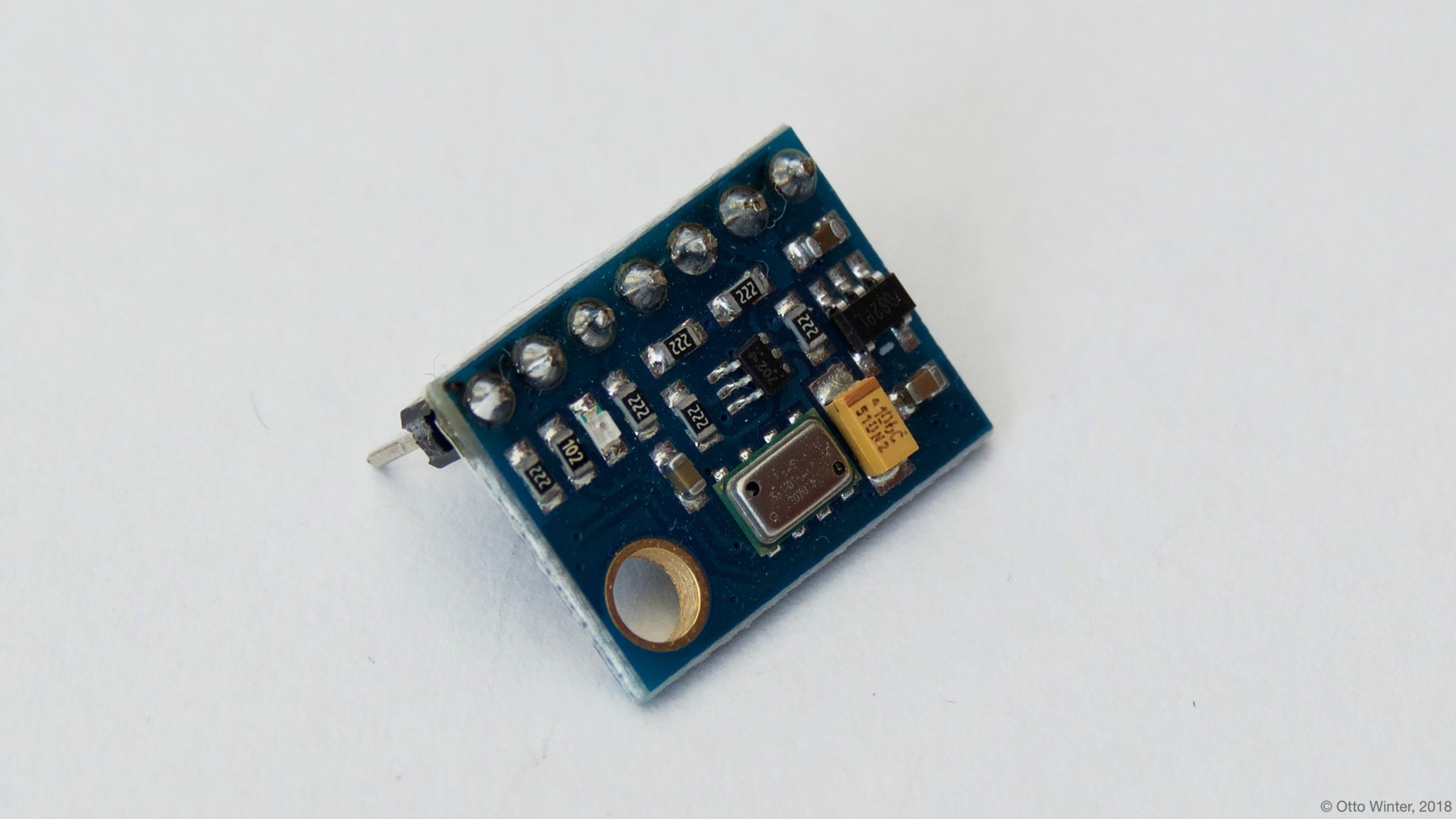

![../../_images/ms5611-full.jpg](../../_images/ms5611-full.jpg)
MS5611 Atmospheric Pressure Sensor¶

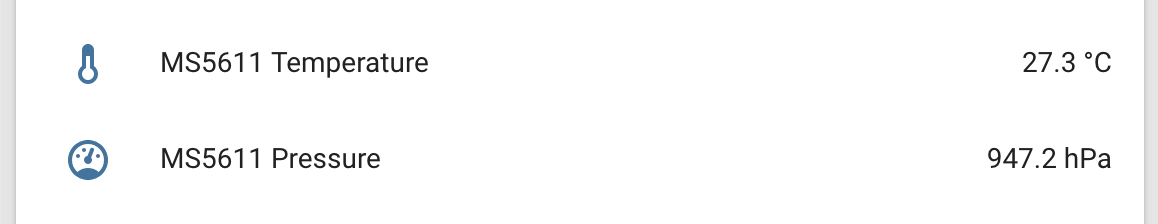

![../../_images/ms5611-ui.png](../../_images/ms5611-ui.png)
# Example configuration entry
sensor:
- platform: ms5611
temperature:
name: "Outside Temperature"
pressure:
name: "Outside Pressure"
address: 0x77
update_interval: 60s
Configuration variables:¶
pressure (Required): The information for the pressure sensor.
All options from Sensor.
temperature (Required): The information for the temperature. sensor
All options from Sensor.
address (Optional, int): Manually specify the I²C address of the sensor. Defaults to
0x77
.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s
.
