Valve Component¶
The valve
component is a generic representation of valves in ESPHome. A valve can (currently) either be closed or
open and supports three commands: open, close and stop.
Note
To use a valve in Home Assistant requires Home Assistant 2024.5 or later.

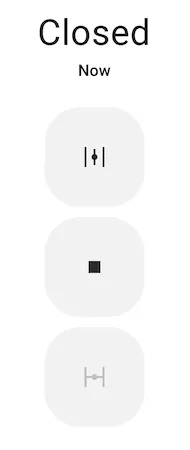

![../../_images/valve-ui.png](../../_images/valve-ui.png)
Base Valve Configuration¶
All valve config schemas inherit from this schema - you can set these keys for valves.
valve:
- platform: ...
device_class: water
Configuration variables:
id (Optional, string): Manually specify the ID for code generation. At least one of id and name must be specified.
name (Optional, string): The name for the valve. At least one of id and name must be specified.
Note
If you have a friendly_name set for your device and you want the valve to use that name, you can set
name: None
.device_class (Optional, string): The device class for the sensor. See https://www.home-assistant.io/components/valve/ for a list of available options.
icon (Optional, icon): Manually set the icon to use for the valve in the frontend.
Advanced options:
internal (Optional, boolean): Mark this component as internal. Internal components will not be exposed to the frontend (like Home Assistant). Only specifying an
id
without aname
will implicitly set this to true.disabled_by_default (Optional, boolean): If true, this entity should not be added to any client’s frontend, (usually Home Assistant) without the user manually enabling it (via the Home Assistant UI). Defaults to
false
.entity_category (Optional, string): The category of the entity. See https://developers.home-assistant.io/docs/core/entity/#generic-properties for a list of available options. Set to
""
to remove the default entity category.
MQTT options:
position_state_topic (Optional, string): The topic to publish valve position changes to.
position_command_topic (Optional, string): The topic to receive valve position commands on.
All other options from MQTT Component.
valve.open
Action¶
This action opens the valve with the given ID when executed.
on_...:
then:
- valve.open: valve_1
Note
This action can also be expressed in lambdas:
auto call = id(valve_1).make_call();
call.set_command_open();
call.perform();
valve.close
Action¶
This action closes the valve with the given ID when executed.
on_...:
then:
- valve.close: valve_1
Note
This action can also be expressed in lambdas:
auto call = id(valve_1).make_call();
call.set_command_close();
call.perform();
valve.stop
Action¶
This action stops the valve with the given ID when executed.
on_...:
then:
- valve.stop: valve_1
Note
This action can also be expressed in lambdas:
auto call = id(valve_1).make_call();
call.set_command_stop();
call.perform();
valve.toggle
Action¶
This action toggles the valve with the given ID when executed, cycling through the states close/stop/open/stop… This allows the valve to be controlled by a single push button.
on_...:
then:
- valve.toggle: valve_1
Note
This action can also be expressed in lambdas:
auto call = id(valve_1).make_call();
call.set_command_toggle();
call.perform();
valve.control
Action¶
This action is a more generic version of the other valve actions and allows all valve attributes to be set.
on_...:
then:
- valve.control:
id: valve_1
position: 50%
Configuration variables:
id (Required, ID): The valve to control.
stop (Optional, boolean): Whether to stop the valve.
state (Optional, string): The state to set the valve to - one of
OPEN
orCLOSE
.position (Optional, float): The valve position to set.
0.0
=0%
=CLOSED
1.0
=100%
=OPEN
Note
This action can also be expressed in lambdas:
auto call = id(valve_1).make_call();
// set attributes
call.set_position(0.5);
call.perform();
Lambdas¶
From lambdas, you can access the current state of the valve (note that these fields are
read-only, if you want to act on the valve, use the make_call()
method as shown above).
position
: Retrieve the current position of the valve, as a value between0.0
(closed) and1.0
(open).if (id(my_valve).position == VALVE_OPEN) { // Valve is open } else if (id(my_valve).position == VALVE_CLOSED) { // Valve is closed } else { // Valve is in-between open and closed }
current_operation
: The operation the valve is currently performing:if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_IDLE) { // Valve is idle } else if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_OPENING) { // Valve is currently opening } else if (id(my_valve).current_operation == ValveOperation::VALVE_OPERATION_CLOSING) { // Valve is currently closing }
valve.on_open
Trigger¶
This trigger is activated each time the valve reaches a fully open state.
valve:
- platform: template # or any other platform
# ...
on_open:
- logger.log: "Valve is Open!"
valve.on_closed
Trigger¶
This trigger is activated each time the valve reaches a fully closed state.
valve:
- platform: template # or any other platform
# ...
on_closed:
- logger.log: "Valve is Closed!"
