MCP2515¶
The MCP2515 communicates with ESPHome via the SPI bus; to use it, you must have at least one
SPI bus with both the mosi_pin
and miso_pin
defined in your ESPHome configuration.
The Wiring options section below illustrates how to wire up your MCP2515.
# Example configuration entry
canbus:
- platform: mcp2515
cs_pin: GPIOXX
can_id: 4
bit_rate: 50kbps
on_frame:
- can_id: 500
then:
- lambda: |-
std::string b(x.begin(), x.end());
ESP_LOGD("canid 500", "%s", &b[0] );
- light.turn_off: light_1
- can_id: 501
then:
- light.turn_on:
id: light_1
brightness: !lambda "return (x.size() > 0) ? (float) x[0]/255 : 0;"
Configuration variables:¶
cs_pin (Required, Pin Schema): Is used to signal to a SPI device when it should listen for data on the SPI bus. Each SPI device has its own
CS
line. Sometimes also calledSS
.clock (Optional, frequency): The frequency of the clock crystal used on the MCP2515 device. One of
8MHZ
,12MHz
,16MHZ
or20MHZ
. Defaults to8MHZ
.mode (Optional, enum): Operating mode. One of:
NORMAL
: Normal operation. (default)LOOPBACK
: Loopback mode is useful for testing your connections to/from the device.LISTENONLY
: Receive data only.
All other options from Canbus.
Note
Not all combinations of clock and bitrate are supported. An unsupported combination will not be flagged at
compile time. Check your ESPHome device’s logs for a message like Invalid frequency/bitrate combination
if you suspect this is an issue.
Wiring options¶

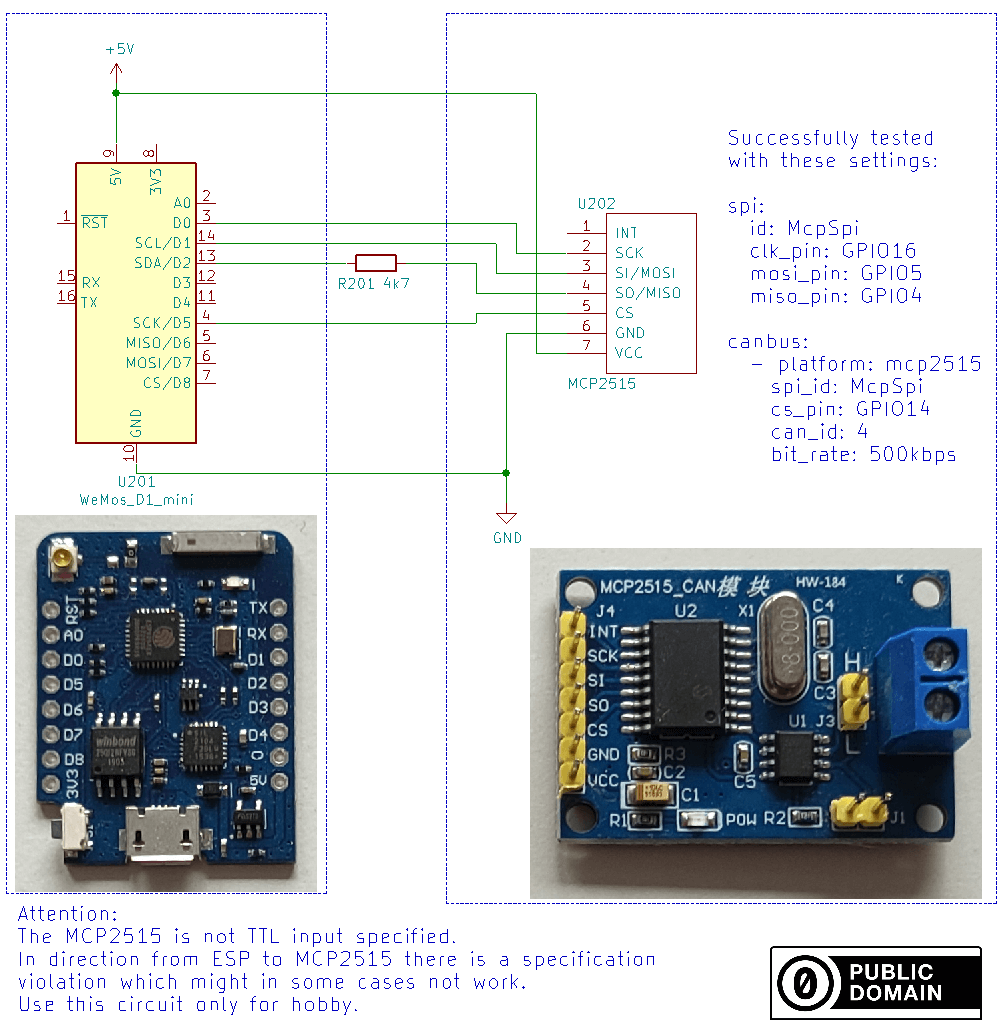

The easiest approach is to use fully assembled boards and just add one resistor on the MISO line. This runs MOSI, SCK and CS out of specification which is rarely a problem.
![../../_images/canbus_mcp2515_resistor.png](../../_images/canbus_mcp2515_resistor.png)

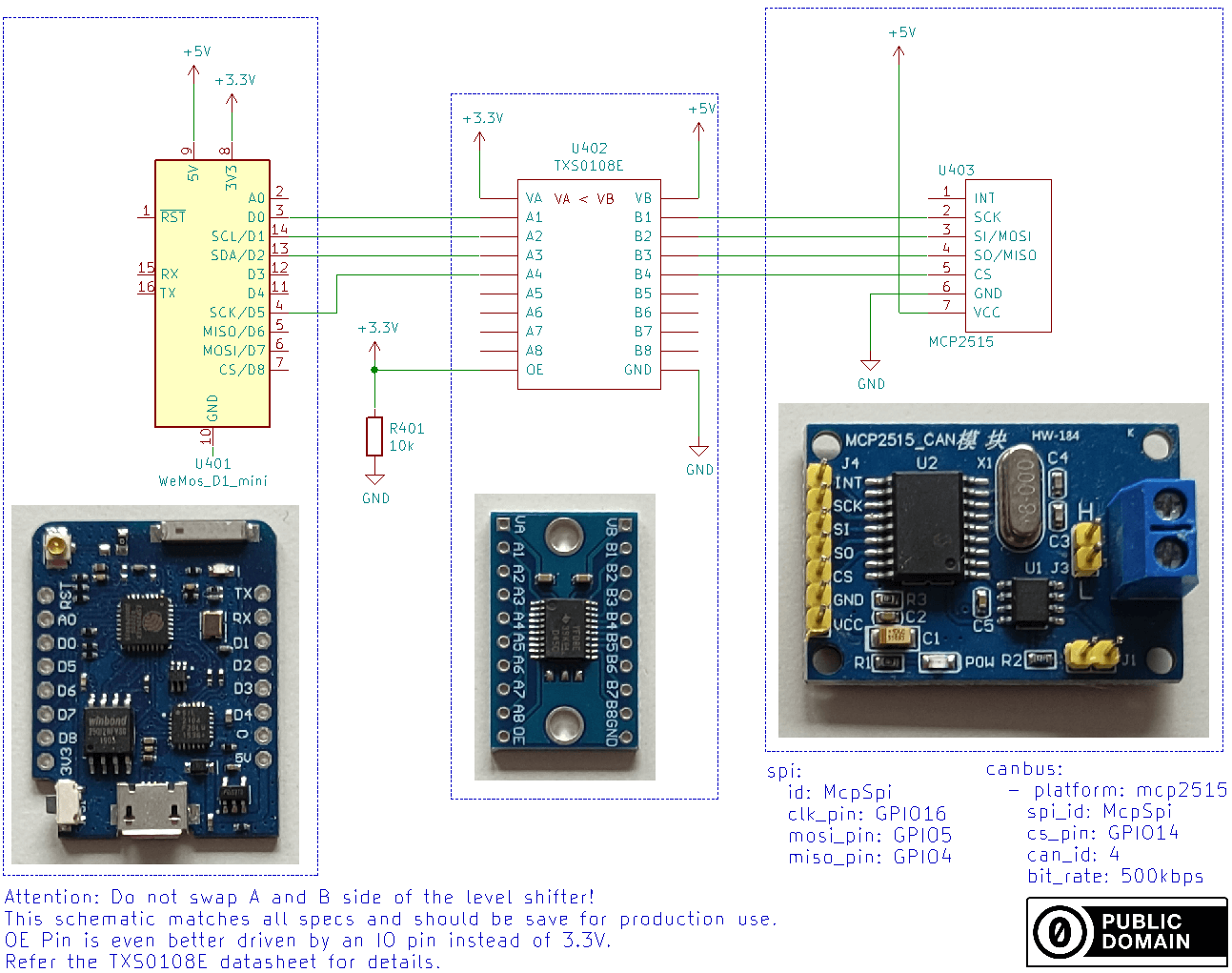

A more complex option is to properly convert the 3.3V and 5V logic levels with a level shifter.
![../../_images/canbus_mcp2515_txs0108e.png](../../_images/canbus_mcp2515_txs0108e.png)
