NAU7802 24-bit ADC

The nau7802 sensor platform allows you to use your NAU7802 ADC (datasheet, Adafruit) with ESPHome. This ADC is typically used with strain gauges to act as a weight sensor.

../../_images/nau7802.png

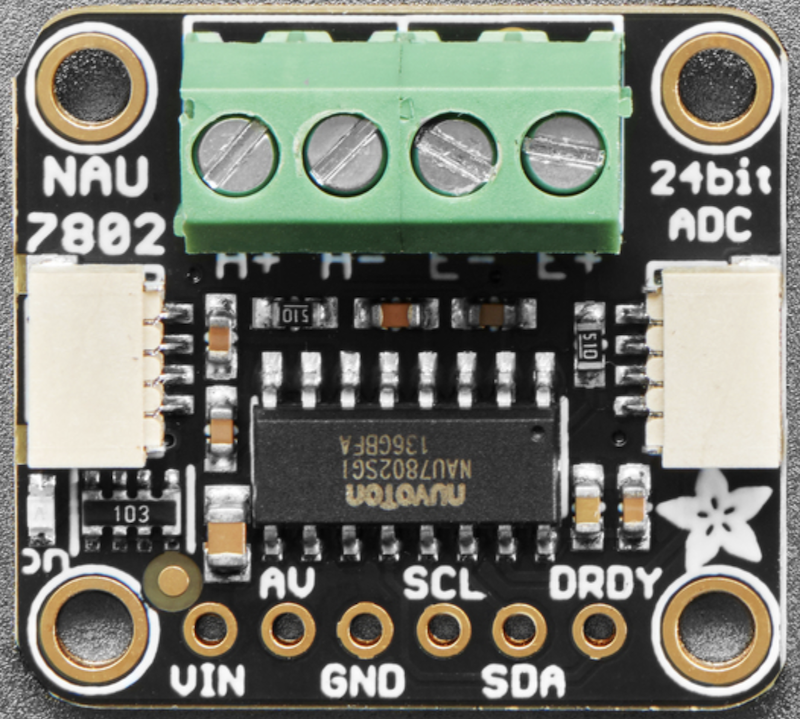

NAU7802 on a breakout board. Image by Adafruit

Connect power pins (VCC/GND) and I2C (SDA/SCL). If using external reference voltage connect (AV/AVDD). Interrupt (INT/DRDY) is not supported.

# Example configuration entry
sensor:
  - platform: nau7802
    name: "NAU7802 Value"
    gain: 128
    ldo_voltage: "3.0V"
    update_interval: 60s

Configuration variables:

  • gain (Optional, enum): ADC gain.

    • 1

    • 2

    • 4

    • 8

    • 16

    • 32

    • 64

    • 128 (default)

  • ldo_voltage (Optional, enum): Voltage used for reference, should be less than VCC

    • 2.4V

    • 2.7V

    • 3.0V (default)

    • 3.3V

    • 3.6V

    • 3.9V

    • 4.2V

    • 4.5V

    • External, Ext Use this if are using the AV/AVDD Pin

  • samples_per_second (Optional, enum): Sets the internal chip sample rate

    • 10 (default)

    • 20

    • 40

    • 80

    • 320

  • offset_calibration (Optional, int): Pre calibrated offset value, range -8388608 to 8388607

  • gain_calibration (Optional, float): Pre calibrated gain value, range 0 to 511.9999998807907

  • update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

  • All other options from Sensor.

Calibration

The NAU7802 includes 3 types of calibration, Internal offset, External Offset, and External Gain. Using the Internal calibration should result in a consistent offset as it uses only reference voltage to calibrate. External calibration uses the sensor reading in its current state. That means if the load is not consistent when the action is executed then you will end up with varying results between calibrations and potential loss of range on the ADC.

For high precision applications it is recommended to perform your calibration and store then store the results in your config using offset_calibration and gain_calibration fields for final usage. You can retrieve the calibrated values when the component dumps its config or when you execute the action to calibrate.

Converting Units

The NAU7802 does not translate its ADC values to weights directly and can be used with varying types of gauges, therefore you have to convert the measurement to units yourself. To calibrate the sensor:

  1. Place a zero load or a known mass on the sensor, for example 0kg

  2. Wait for the data to arrive in the logs and write down the value. For example 120.

  3. Place another (different) known mass on the sensor, for example 1kg

  4. Again wait for the data to arrive and note the value, for example 810.

Once you’ve done those steps, you can use the calibrate_linear filter to map the incoming value to the calibrated one:

# Example configuration entry
sensor:
  - platform: nau7802
    # ... Other NAU7802 options
    filters:
      - calibrate_linear:
          - 120 -> 0
          - 810 -> 1
    unit_of_measurement: kg

Replace the masses and values 120.0, 810.0, etc with your values.
