Waveshare E-Paper Display

The waveshare_epaper display platform allows you to use some E-Paper displays sold by Waveshare with ESPHome. The 2.13” TTGO module and the Waveshare Cloud Module with an ESP32 on the board are supported as well. Depending on your specific revision of the TTGO board you might need to try out the -b73 or -b1 version (see below). The 1.54” Good Display gdew0154m09 as used in the M5Stack Core Ink is also supported. Similar modules sold by other vendors might also work but not have been tested yet.

Currently, most displays managed by Esphome are single-color E-Ink displays; but Esphome also supports E-Ink displays capable of showing up to 7 colors.

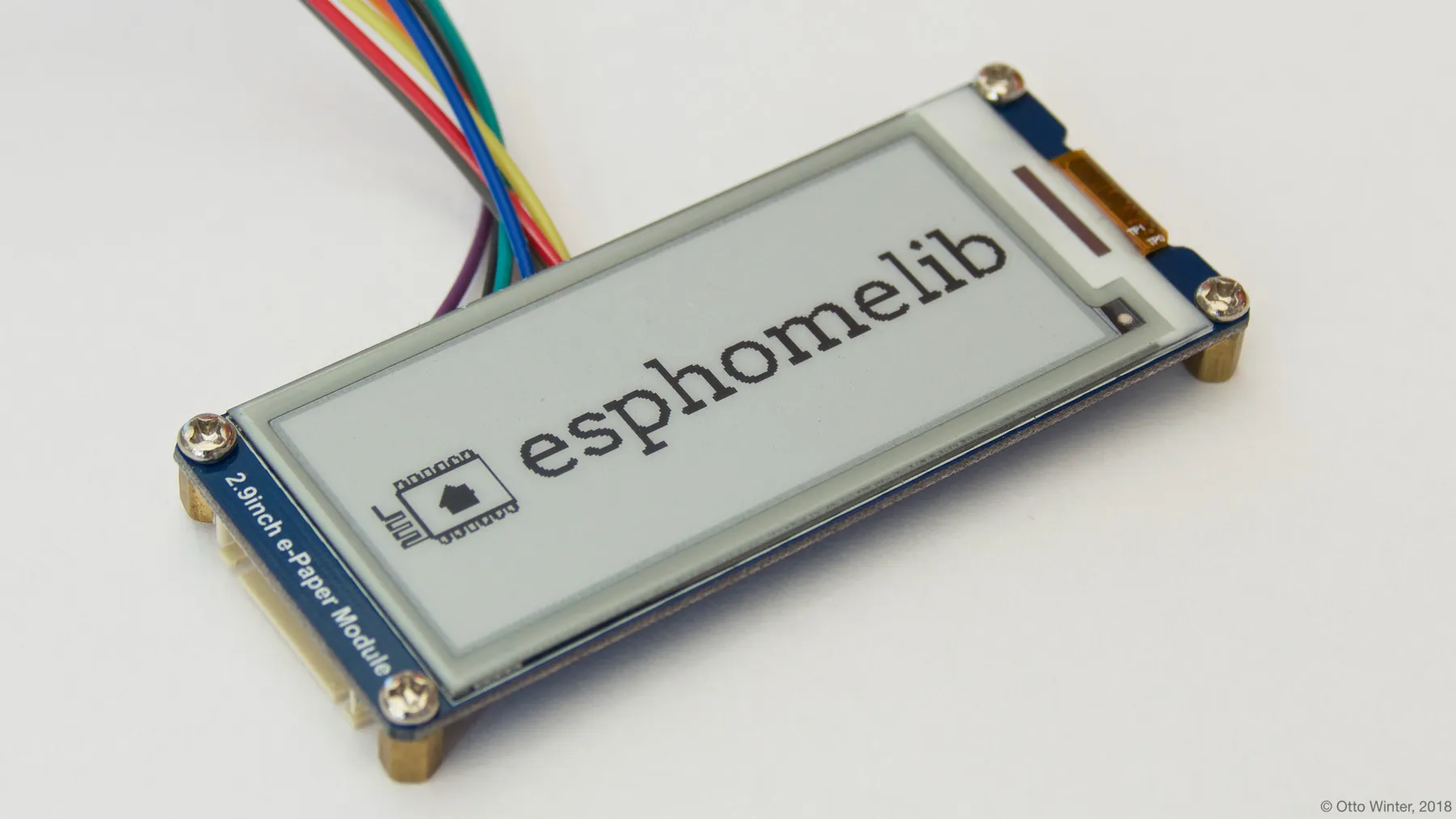

Waveshare E-Paper 2.9 Inch E-Paper Display.

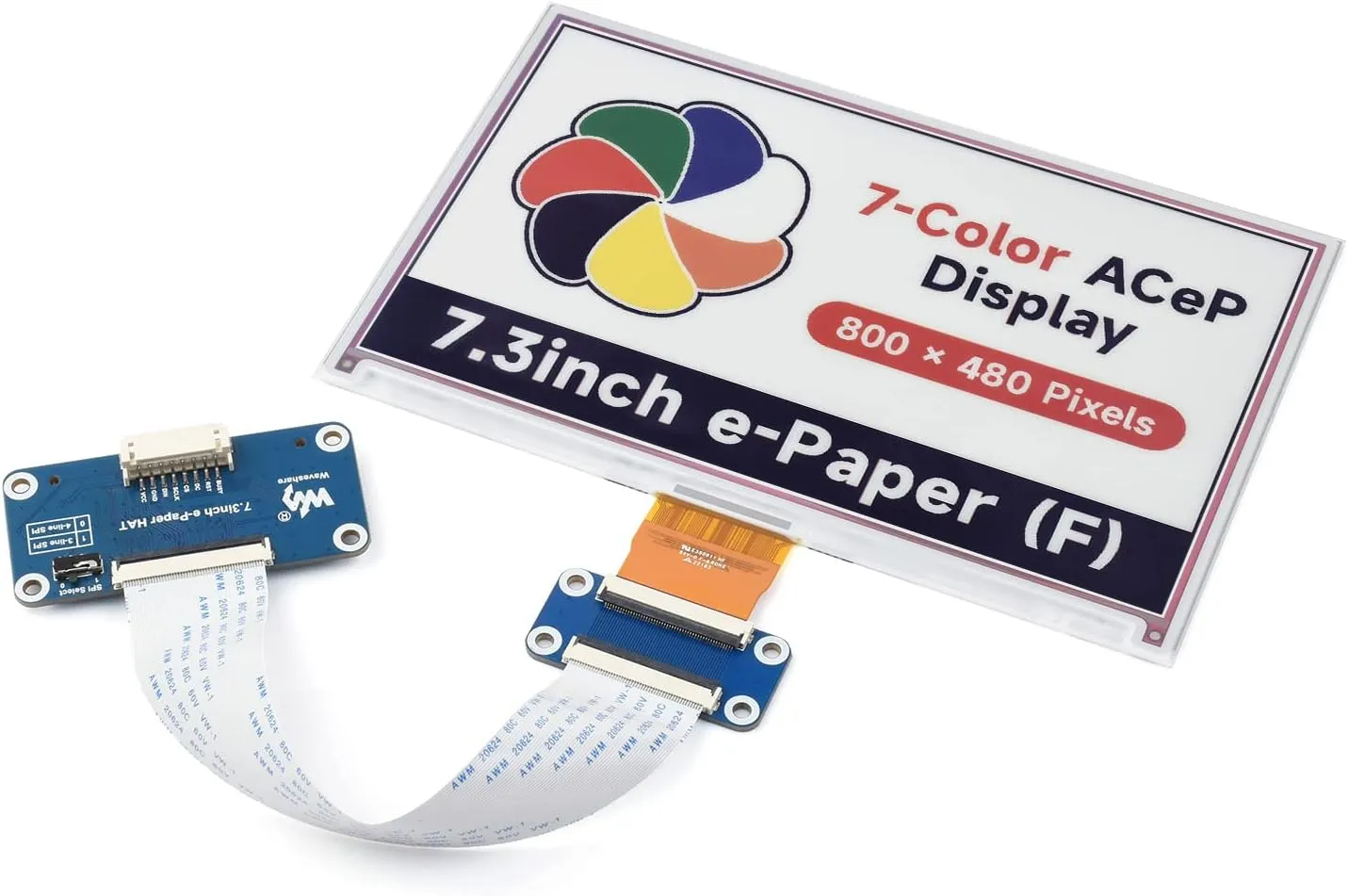

Waveshare E-Paper 7.3 Inch ACeP 7-Color E-Paper Display.

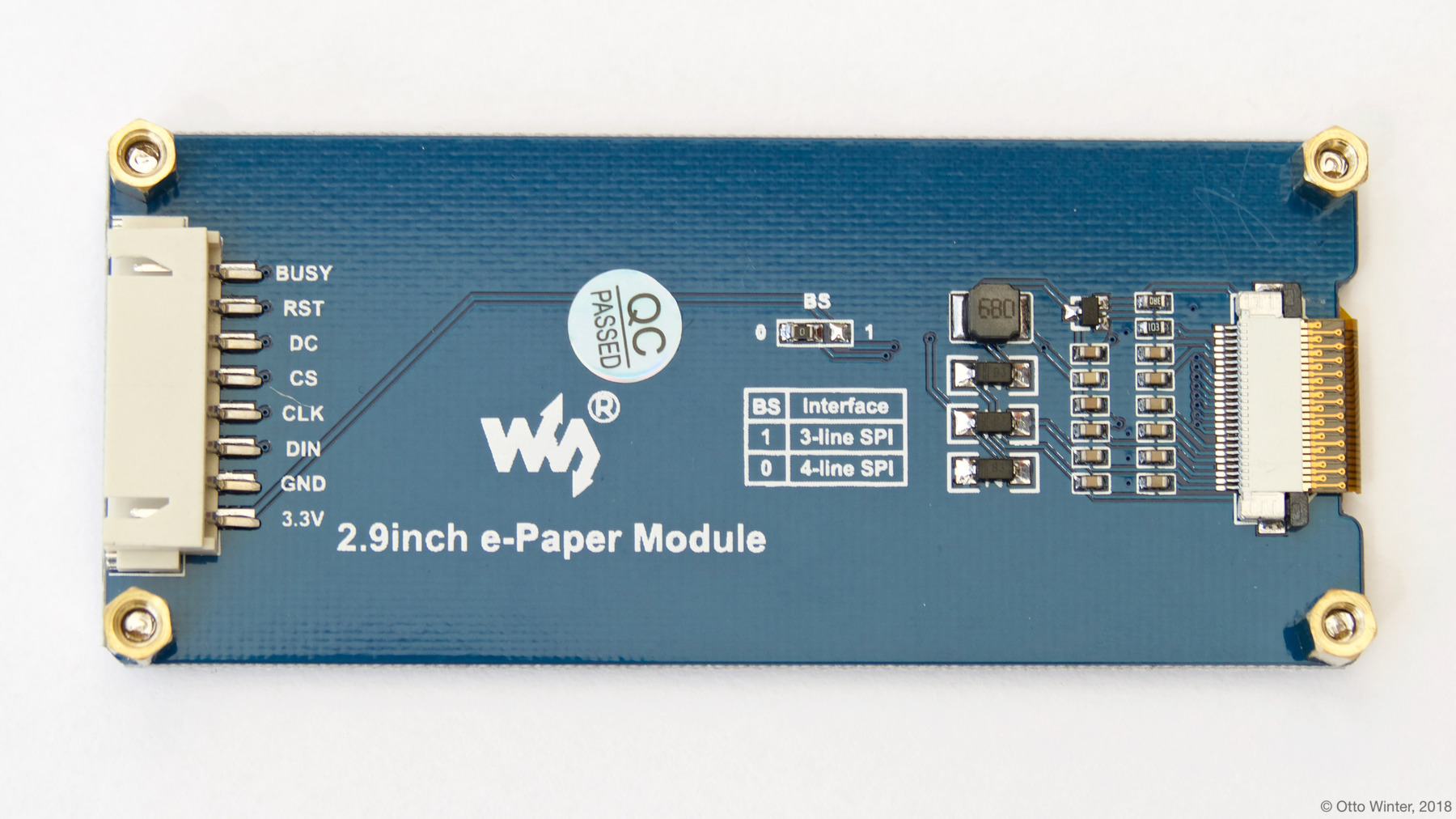

The communication ESPHome has chosen to use for this integration is 4-wire SPI, as it’s the most stable and high-speed. So you need to make sure your board is set to the 4-wire SPI mode and have an spi: section in your configuration.

E-Paper Pin	ESP Pin	ESPHome Option
VCC	3.3V	N/A
GND	GND	N/A
CLK	Any GPIO	spi.clk_pin
DIN	Any GPIO	spi.mosi_pin
CS	Any GPIO	cs_pin
DC	Any GPIO	dc_pin
BUSY (Optional)	Any GPIO	busy_pin
RESET (Optional)	Any GPIO	reset_pin

# Example configuration entry
font:
  - file: 'fonts/Comic Sans MS.ttf'
    id: font1
    size: 8

spi:
  clk_pin: D0
  mosi_pin: D1

display:
  - platform: waveshare_epaper
    cs_pin: D2
    dc_pin: D3
    busy_pin: D4
    reset_pin: D5
    model: 2.90in
    full_update_every: 30
    lambda: |-
      it.print(0, 0, id(font1), "Hello World!");

For the 7-color display, colors can be defined like this in the lambda function:

lambda: |-
  const auto BLACK   = Color(0,   0,   0,   0);
  const auto RED     = Color(255, 0,   0,   0);
  const auto GREEN   = Color(0,   255, 0,   0);
  const auto BLUE    = Color(0,   0,   255, 0);
  const auto YELLOW  = Color(255, 255, 0,   0);
  const auto ORANGE  = Color(255, 127, 0,   0);
  const auto WHITE   = Color(255, 255, 255, 0);

  it.print(0, 0, id(font1), BLUE, "Hello World in blue!");
  it.print(100, 100, id(font1), RED, "Hello World in red!");

Configuration variables:

• cs_pin (Required, Pin Schema): The CS pin.

• dc_pin (Required, Pin Schema): The DC pin.

• model (Required): The model of the E-Paper display. Options are:

  • 1.54in

  • 1.54inv2

  • 1.54inv2-b - Black/White/Red

  • 2.13in - not tested

  • 2.13in-ttgo - T5_V2.3 tested. Also works for Wemos D1 Mini ePaper Shield 2.13 1.0.0 “LOLIN”

  • 2.13in-ttgo-b73 - T5_V2.3 with B73 display tested

  • 2.13in-ttgo-b74 - T5_V2.3.1 with B74 display tested

  • 2.13in-ttgo-b1 - T5_V2.3 with B1 display tested

  • 2.13in-ttgo-dke - T5_V2.3 with DKE group display (DEPG0213BN) tested

  • 2.13inv2 - 2.13in V2 display (Pico e-Paper 2.13v2 and Cloud Module)

  • 2.13inv3 - 2.13in V3 display (Pico e-Paper 2.13v3)

  • 2.70in - currently not working with the HAT Rev 2.1 version

  • 2.70inv2

  • 2.70in-b - Black/White/Red

  • 2.70in-bv2 - Black/White/Red

  • 2.90in

  • 2.90in-dke

  • 2.90inv2

  • 2.90inv2-r2 - 2.9in V2 display, but with different initialization and full/partial display refresh management than 2.90inv2

  • 2.90in-b - B/W rendering only

  • 2.90in-bV3 - B/W rendering only

  • 4.20in

  • 4.20in-bV2 - B/W rendering only

  • gdey042t81 - GoodDisplay GDEY042T81 4.2” B/W

  • 4.20in-bV2-bwr - BWR rendering enabled (uses double the amount of RAM for the display buffer as B/W rendering)

  • 5.83in

  • 5.83inv2

  • 7.30in-f - 7.3in 7-color display (black, white, red, yellow, blue, green, and orange)

  • 7.50in

  • 7.50in-bV2 - also supports v3, B/W rendering only

  • 7.50in-bV3 - display with the ‘(V3)’ sticker on the back, B/W rendering only

  • 7.50in-bV3-bwr - display with the ‘(V3)’ sticker on the back, BWR rendering enabled (uses double the amount of RAM for the display buffer as B/W rendering)

  • 7.50in-bc - display with version sticker ‘(C)’ on the back, B/W rendering only

  • 7.50inV2 - Can’t use with an ESP8266 as it runs out of RAM

  • 7.50inV2alt (alternative version to the above 7.50inV2)

  • 7.50inV2p - Support for partial refresh and fast refresh (Only suitable for 7.50inV2 models manufactured after September 2023)

  • 7.50in-hd-b - Can’t use with an ESP8266 as it runs out of RAM

  • gdey029t94 - GooDisplay GDEY029t94, as used in the monochrome 2.9inch display from seeedstudio

  • gdew029t5 - GooDisplay GDEW029T5, as used on the AdaFruit MagTag and Pimoroni Badger

  • 1.54in-m5coreink-m09 - GoodDisplay gdew0154m09, as used in the M5Stack Core Ink

  • 13.3in-k - 13.3in, with the K model, 960x680, B/W rendering only

Warning

The BUSY pin on the gdew0154m09, the Waveshare 7.30in-f and the Waveshare 7.50in V2 models must be inverted to prevent permanent display damage. Set the busy pin to inverted: true in the config.

• busy_pin (Optional, Pin Schema): The BUSY pin. Defaults to not connected.

• reset_pin (Optional, Pin Schema): The RESET pin. Defaults to not connected. Make sure you pull this pin high (by connecting it to 3.3V with a resistor) if not connected to a GPIO pin. The 2.13” B74 and V2 display variants require the reset pin.

• rotation (Optional): Set the rotation of the display. Everything you draw in lambda: will be rotated by this option. One of 0° (default), 90°, 180°, 270°.

• full_update_every (Optional, int): E-Paper displays have two modes of switching to the next image: A partial update that only changes the pixels that have changed and a full update mode that first clears the entire display and then re-draws the image. The former is much quicker and nicer, but every so often a full update needs to happen because artifacts accumulate. On the 1.54in, 1.54inv2, 2.13in, 2.13inv2, 2.90in, 2.90inv2, 7.50inV2p and gdew029t5 models, you have the option to only do a full-redraw every x-th time using this option. Defaults to 30 on the described models and a full update for all other models.

• reset_duration (Optional, Time): Duration for the display reset operation. Defaults to 200ms. Setting this value to 2ms may resolve issues with newer e-Paper Driver modules (e.g. Rev 2.1).

• lambda (Optional, lambda): The lambda to use for rendering the content on the display. See Display Rendering Engine for more information.

• update_interval (Optional, Time): The interval to re-draw the screen. Defaults to 1s, use never to only manually update the screen via component.update.

• pages (Optional, list): Show pages instead of a single lambda. See Display Pages.

• spi_id (Optional, ID): Manually specify the ID of the SPI Component if you want to use multiple SPI buses.

• id (Optional, ID): Manually specify the ID used for code generation.
